3-28. BLOWER ASSY/DC MOTOR - REPLACE
3-28
This task covers: Removal and Installation
INITIAL SETUP
Personnel Required:
67N, UH1 Helicopter Repairer (2)
67T, UH60 Helicopter Repairer (2)
68F, Aircraft Electrical Repairer
Parts/Materials:
None
Tools and Test Equipment:
Tool Kit, Aims.ft Mechanics
NSN 5180-00-323-4692
Shop Set, Intermediate Maintenance
NSN 4920-00-472-4183
Tool Kit, Electrical Repairer
NSN 5180-00-323-4915
Equipment Condition:
Hoist installed in assembly stand
Control panel removed
Equipment Condition Para:
Task 3-5
Task 2-27
References:
Aircraft Electric and Electronic Wiring
TM 55-1500-323-24
1. Removal.
a.
b.

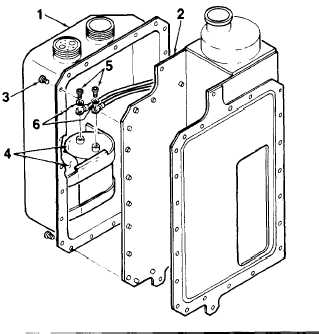

Remove control panel cover (1) from control
panel (2) be removing screws (3).
Disconnect electrical wiring from capacitors
(4) by removing nuts (5) and washers (6). Un-
solder wiring braid from control panel.
